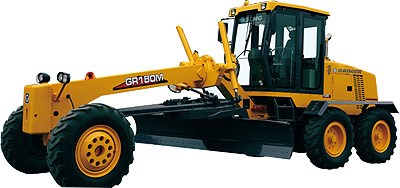

XCMG Motor Grader (GR180)
Product Detail
Model NO.: GR180 Trademark: XCMG
Product Specification:
Motor grader with CE. Cummins engine, ZF power shift transimssion, with front blade and rear ripper optionals. Wuhan Kudat company can suppy you motor graders with 135HP-215HP.
Engine model Cummins CTAA8.3-C
Rated power/speed 138kw (185hp)/2200rpm
Dimension (LxWxH) (standard) 9298x2601x3430mm
Operating weight (standard) 15400kg
Module weight on front wheels 4620kg
Module weight on rear wheels 10780kg
Tire size 17.5-25 RP12
Mini ground clearance 430mm
Distance between front and rear axles 6266mm
Distance between middle and rear wheels 1639mm
Operation specification
Max. Steering angle of front wheels ± 450
Max. Lean angle of front wheels ± 170
Max. Oscillation angle of front axle ± 150
Frame articulation angle ± 250
Min. Turning radius using articulation 7.8m
Blade Max. Lift above ground 460mm
Max. Depth of cutting 500mm
Max. Blade position angle 900
Blade cutting angle 280~700
Circle reversing rotation 3600
Moldboard width x height 3960x610mm
Performance specification
Traveling speed, forward 5.8.11.19.23.38 km/h
Traveling speed, reverse 5.11.23 km/h
Max. Tractive force 80 kN
Max. Grade ability 200
Tire inflation pressure 2.6 bar
Working hydraulic pressure 18 Mpa
Transmission pressure 1.6~1.8 Mpa (16~28kg/cm2)
Service refill (reference)
Fuel Tank 280L
Engine (crankcase) oil 24L
Transmission 26L
Counter balancing case 46L
Hydraulic system 110L
